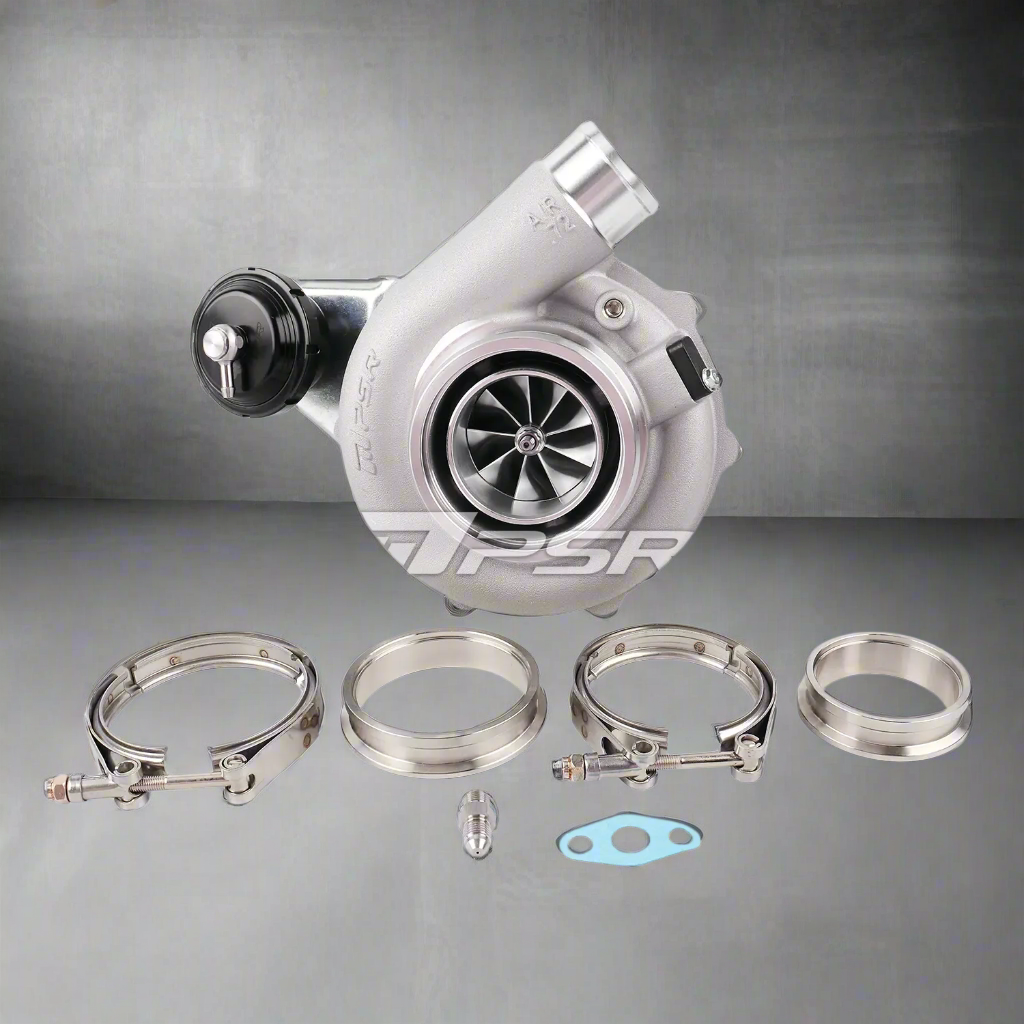

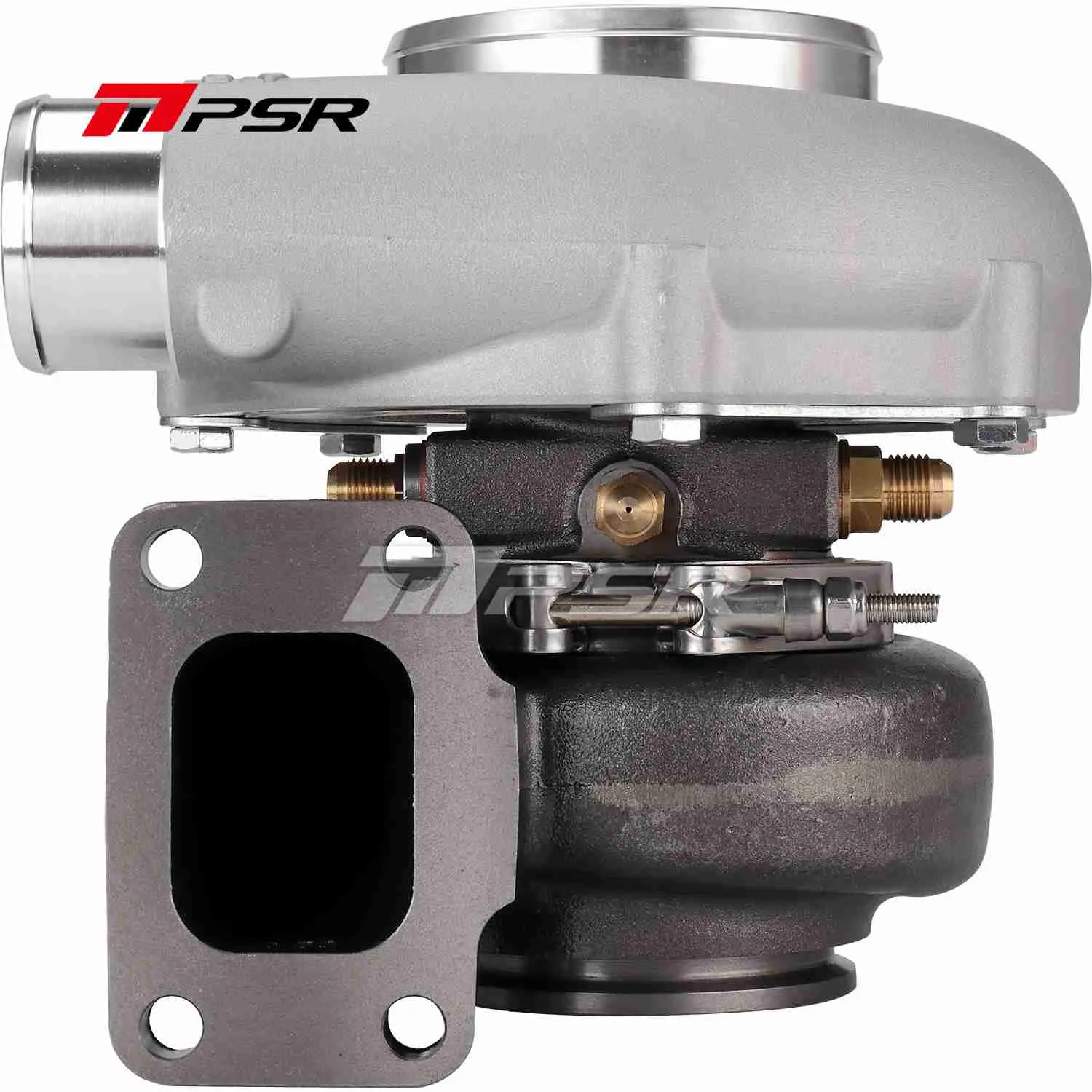

Pulsar Reverse Rotation 6862G Dual Ball Bearing Turbocharger 1050

As a leading brand in the performance turbocharger industry, PSR is committed to using the latest technology and highest-quality materials to design and manufacture our products. This ensures that our turbochargers are not only highly efficient and durable, but also able to deliver maximum performance and longevity.

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 9 Blade G-Aero billet compressor wheel with extended tapered tip technology

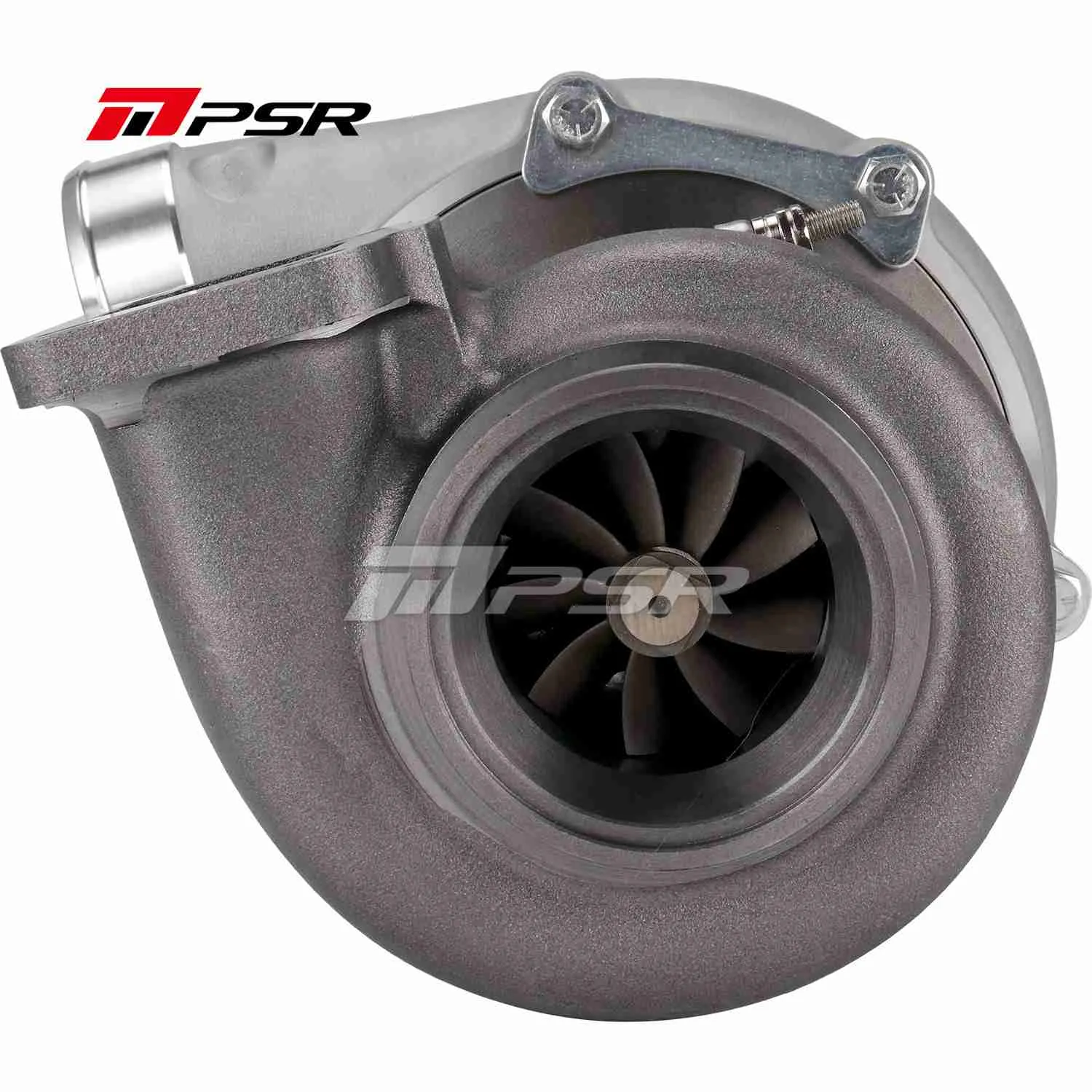

• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Internally Wastegated, Billet Actuator(Working pressure 12 psi)

6862G SPECS:

• Compressor Wheel: 68*84mm
• Turbine Wheel: 68*62mm
• Compressor Inlet: 4” Hose

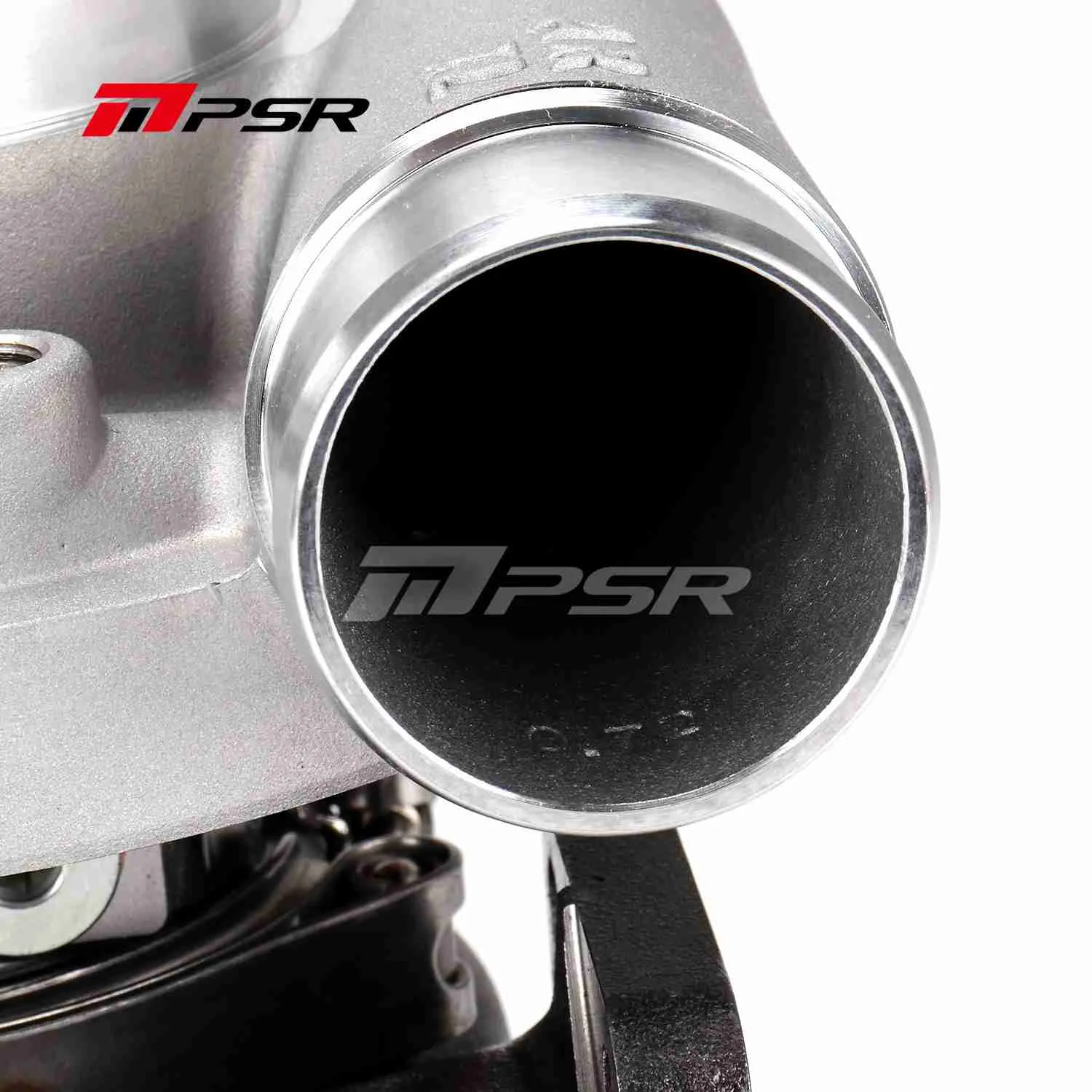

• Compressor Outlet: 2.5” Hose

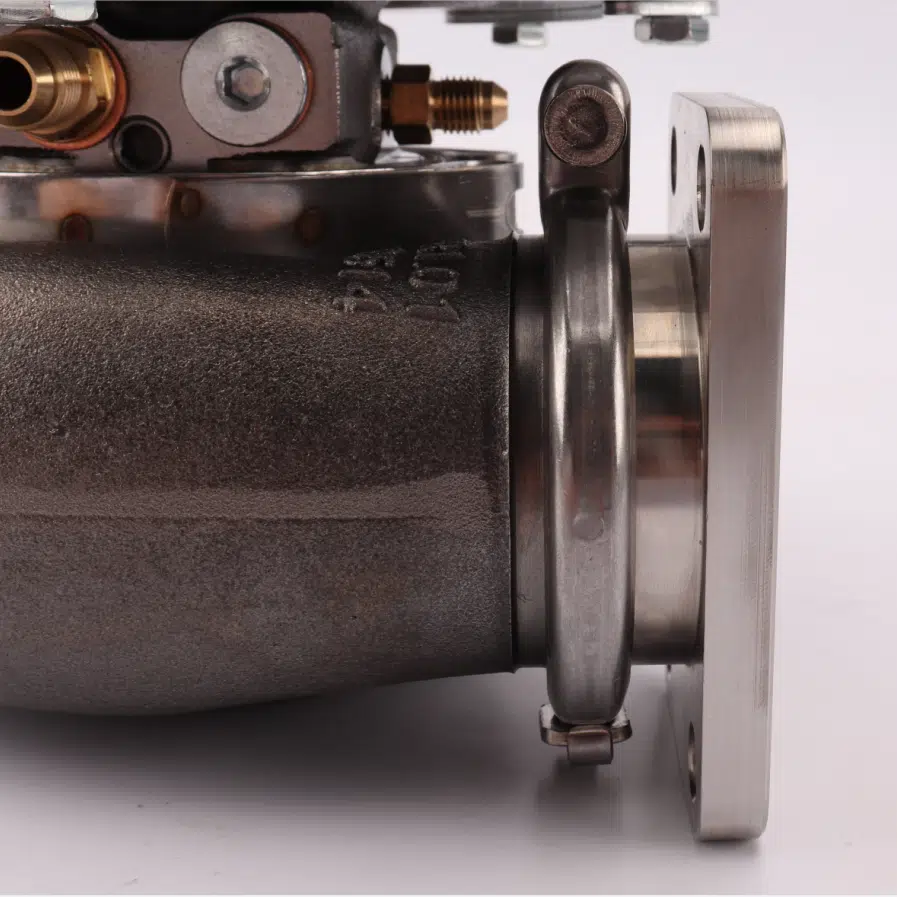

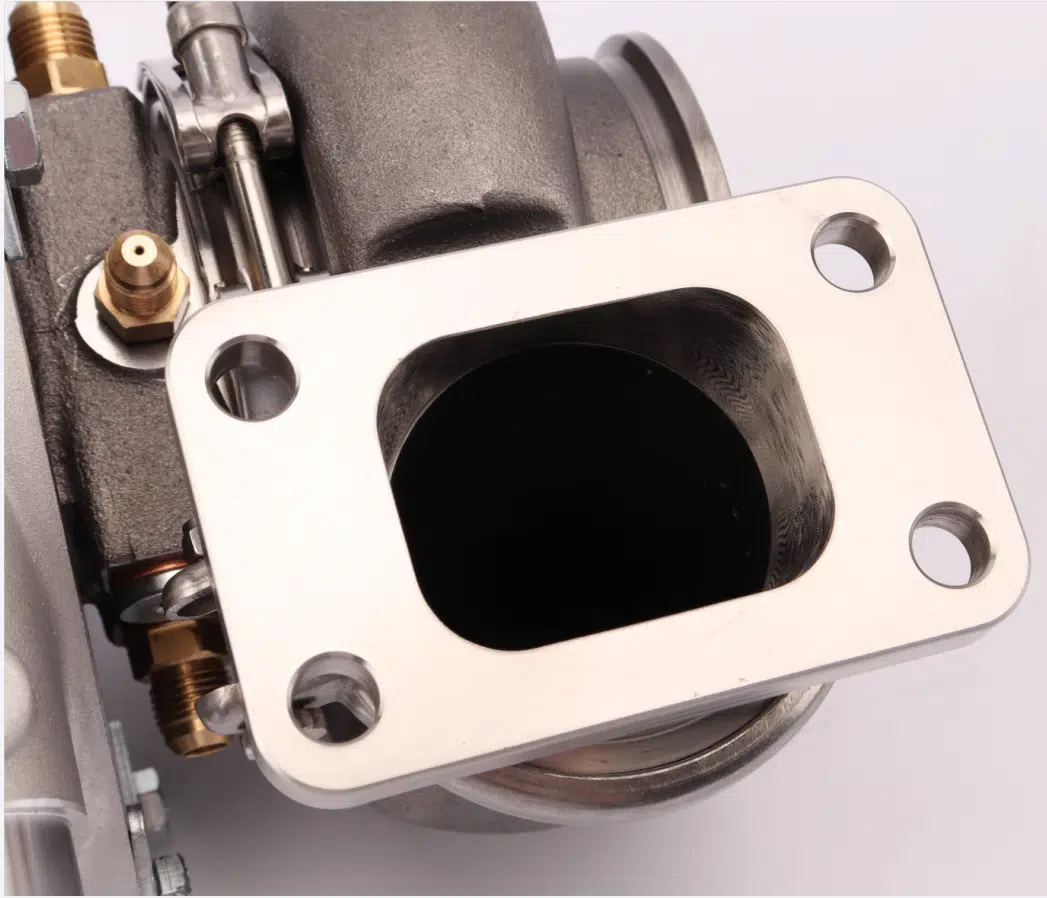

• Turbine Inlet: T3/T4/V-BAND
• Turbine Outlet: 3” V-Band
• Water Ports: 2-M14 x 1.5
• Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
• Oil Drain: Std T3


Seven Turbine Housing Options:

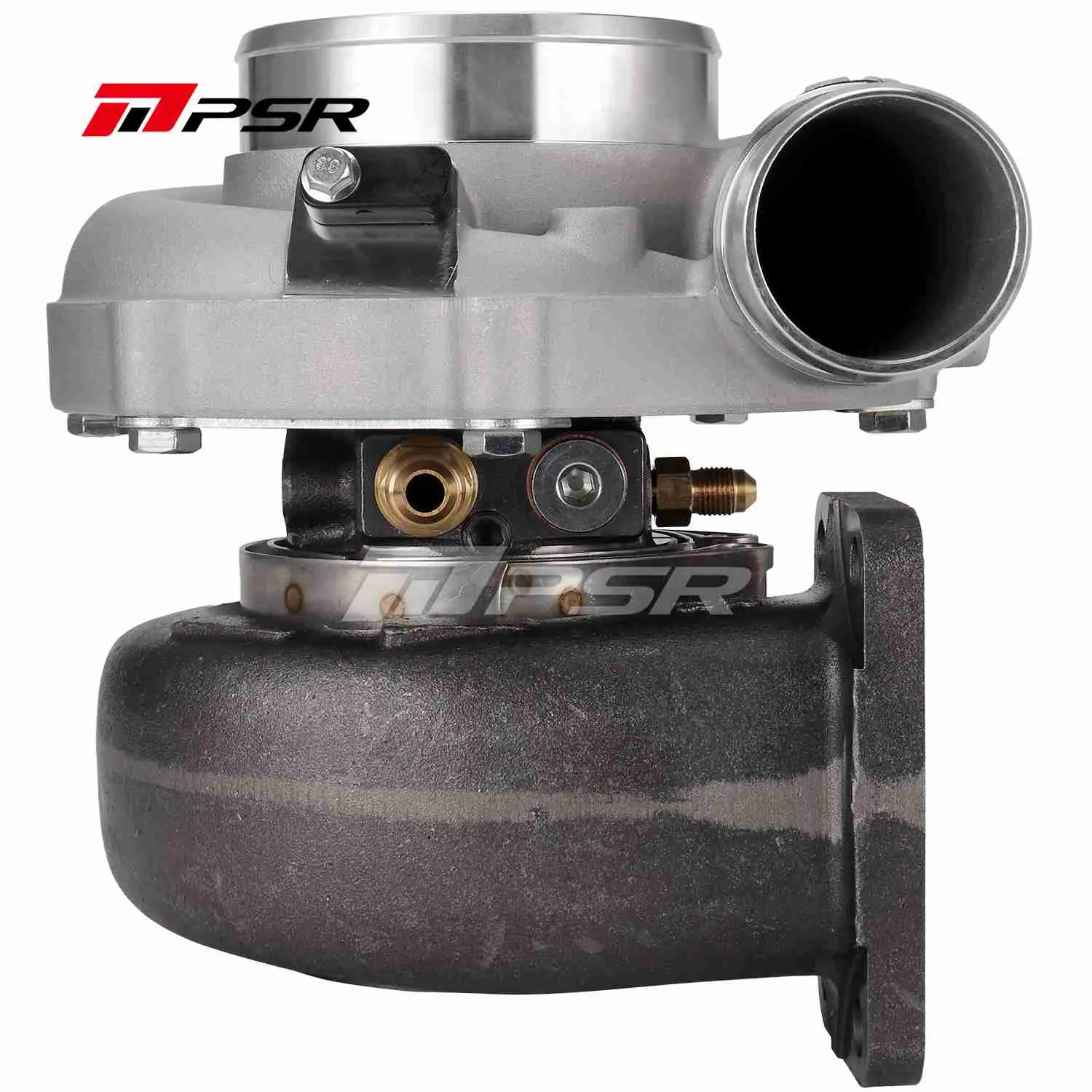

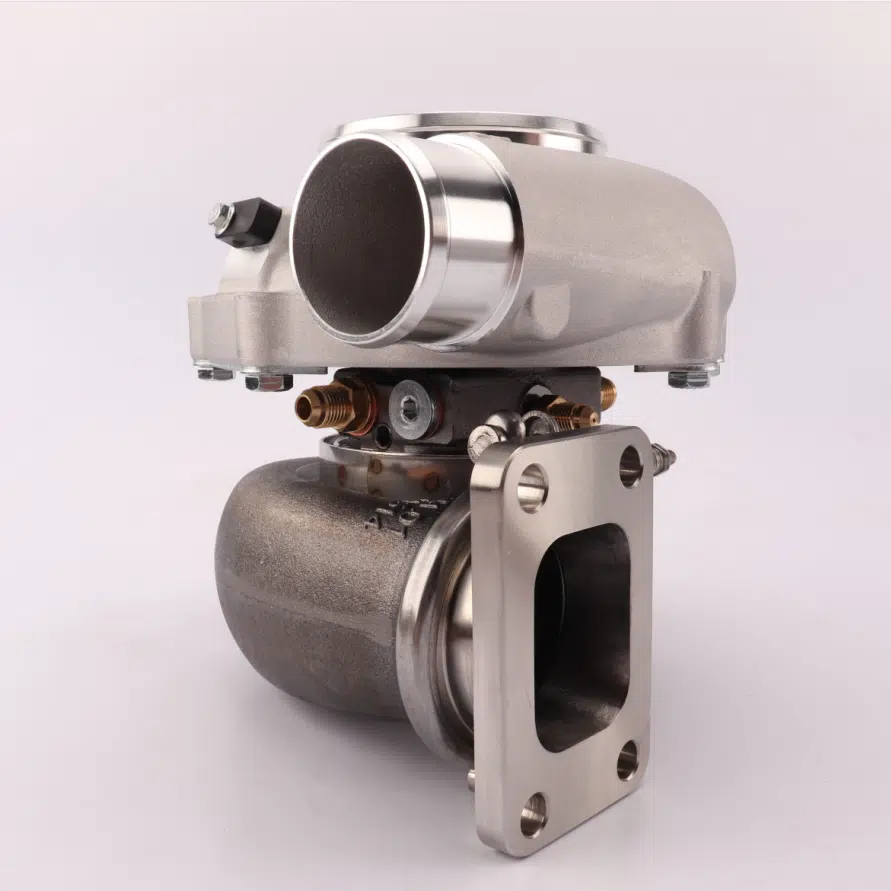

• T3 0.83A/R
• T4 0.82A/R

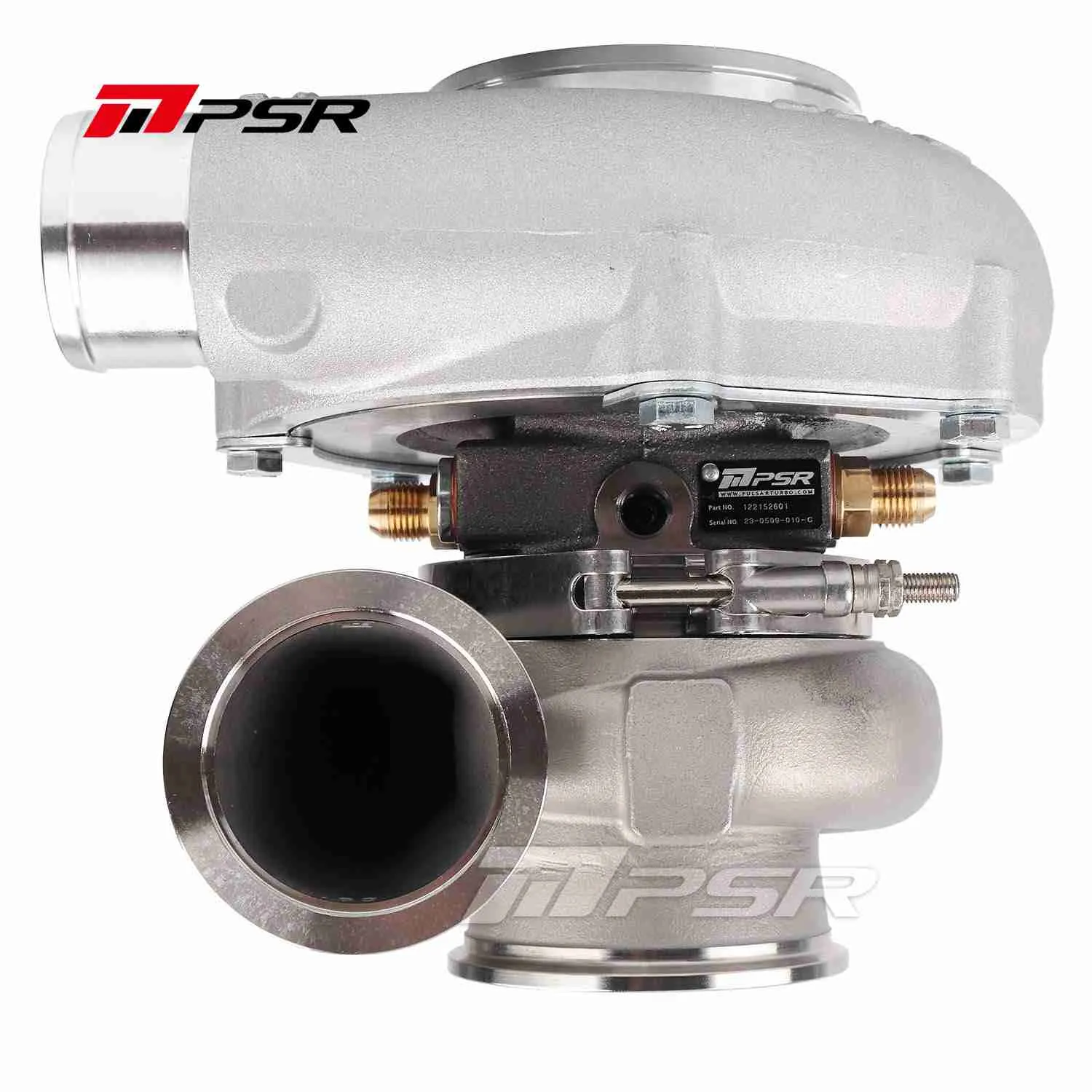

• Dual vband 0.83A/R
• Dual vband 1.01A/R
• T4 divided 0.85A/R
• T3 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T3)
• T4 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T4)

Contact us for Custom Configurations.
