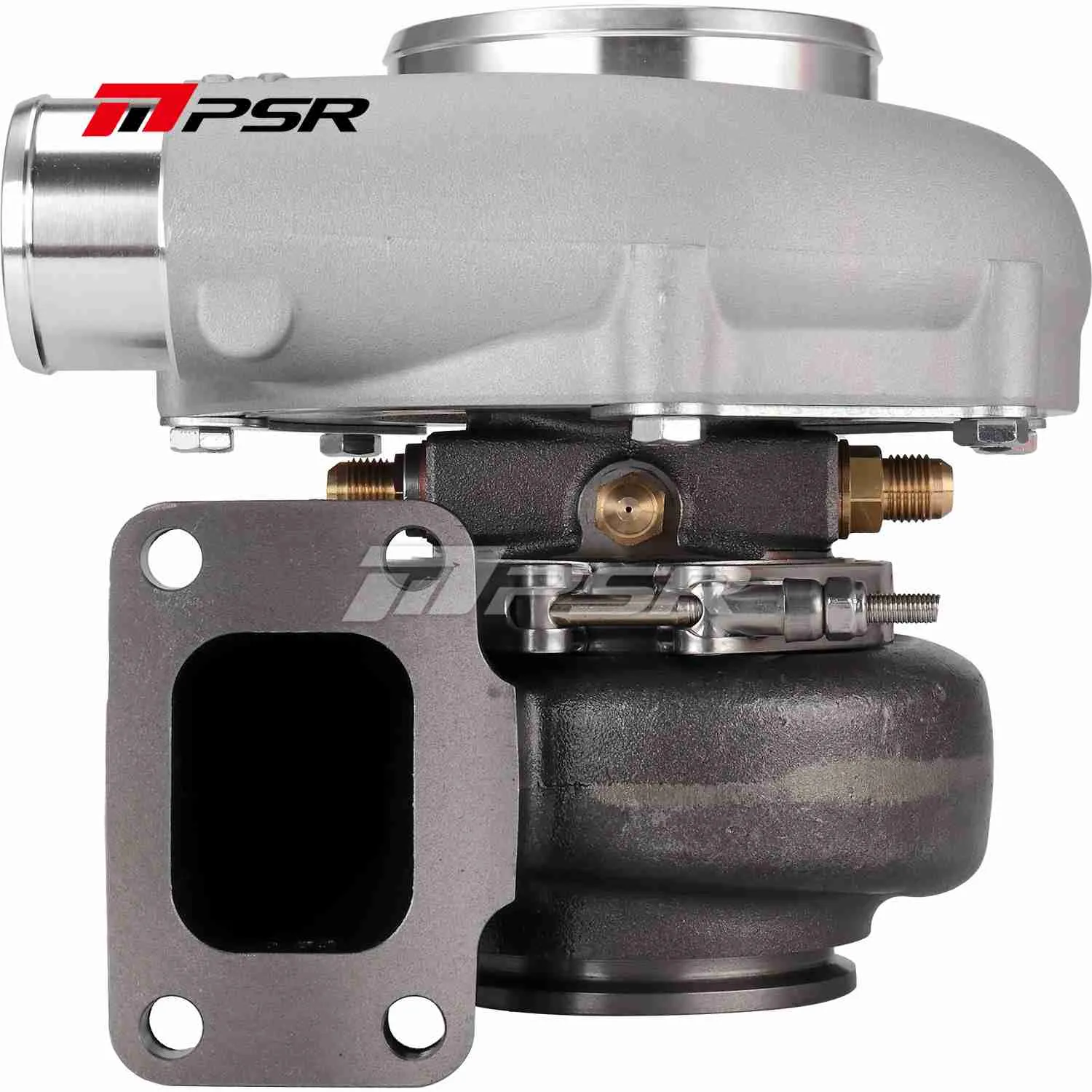

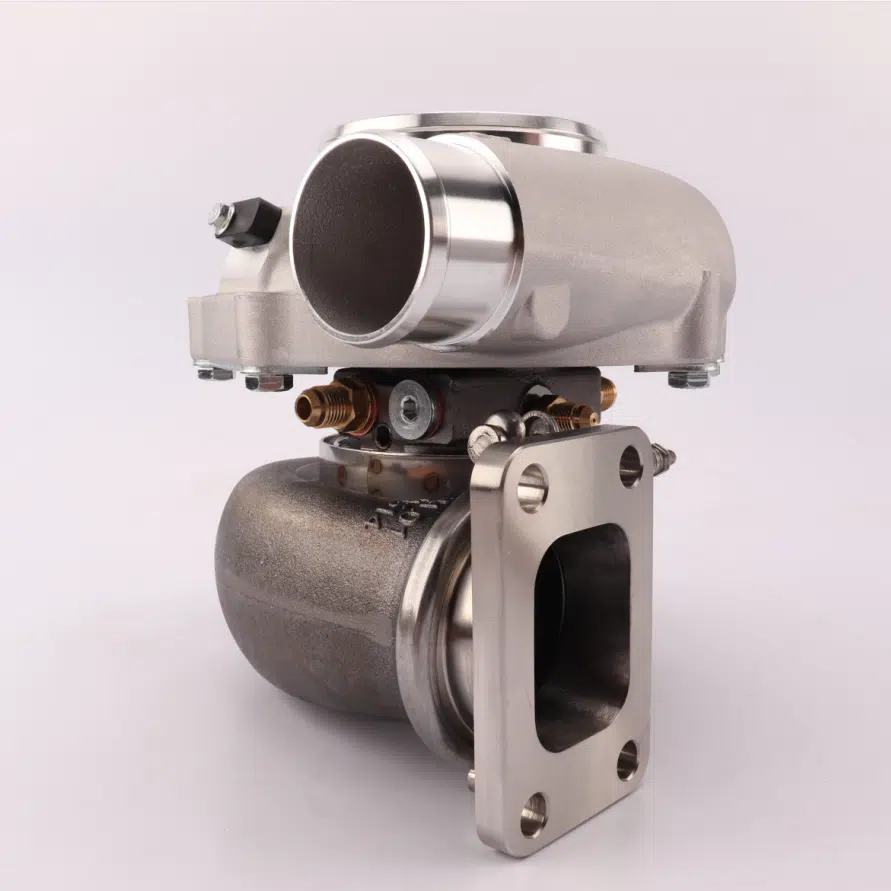

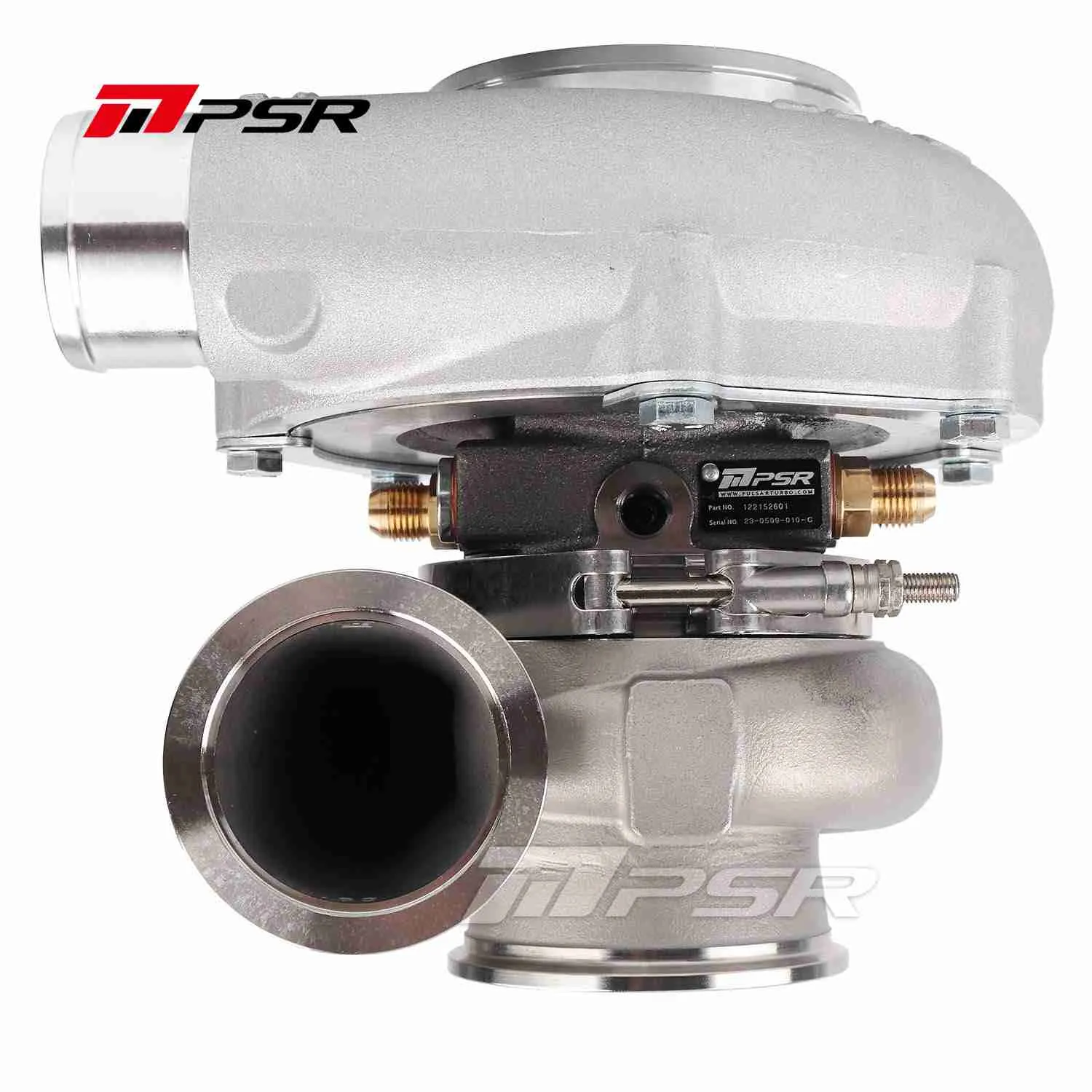

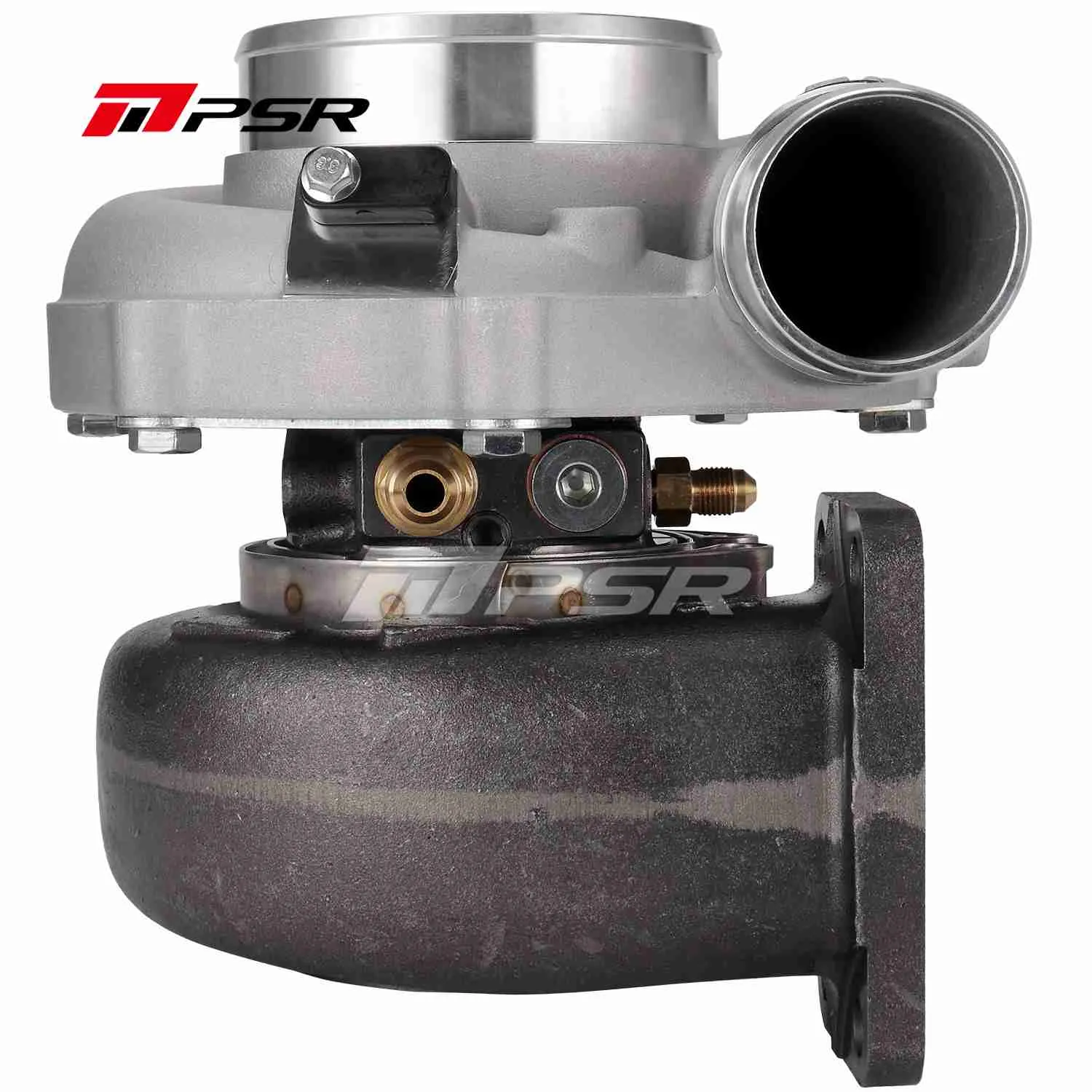

Pulsar Reverse Rotation 5855G Dual Ball Bearing Turbocharger HP Rating 770

As a leading brand in the performance turbocharger industry, PSR is committed to using the latest technology and highest-quality materials to design and manufacture our products. This ensures that our turbochargers are not only highly efficient and durable, but also able to deliver maximum performance and longevity.

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion

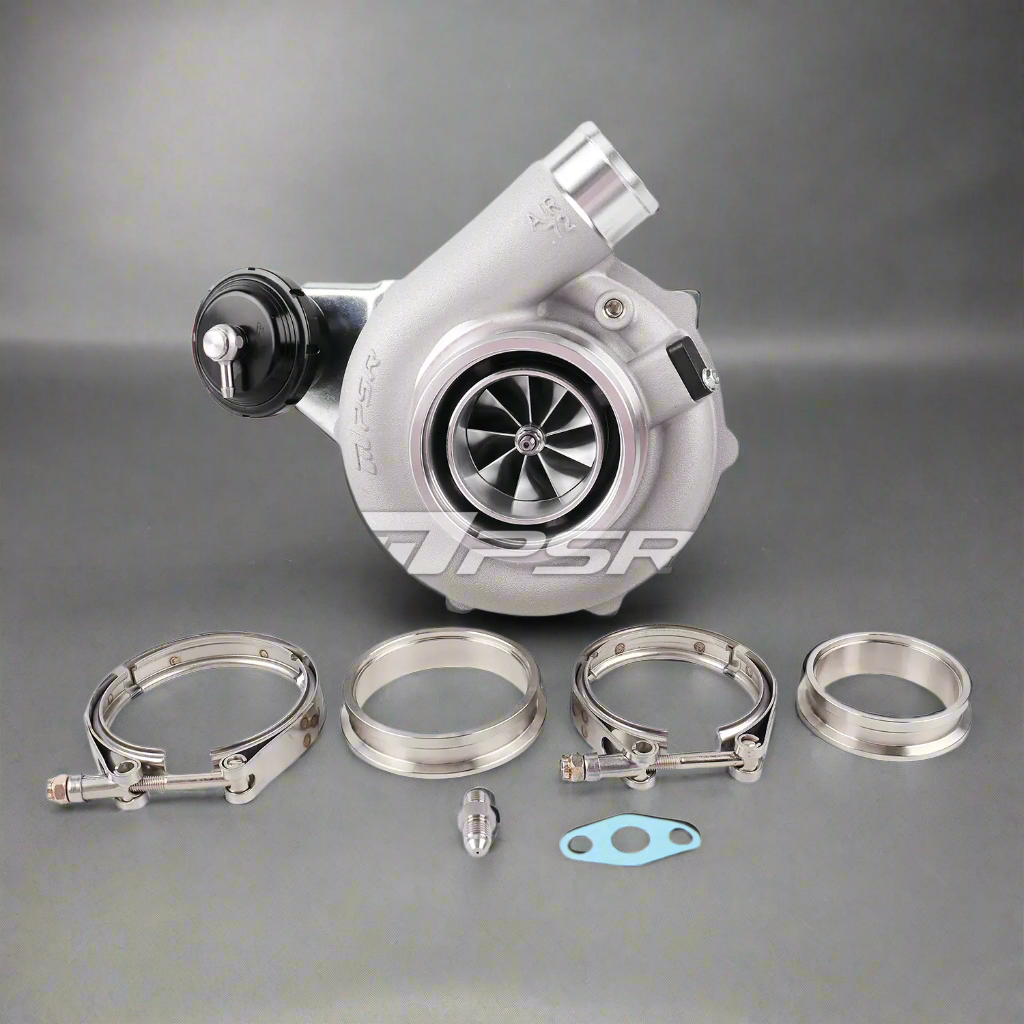

• 9 Blade G-Aero billet compressor wheel with extended tapered tip technology

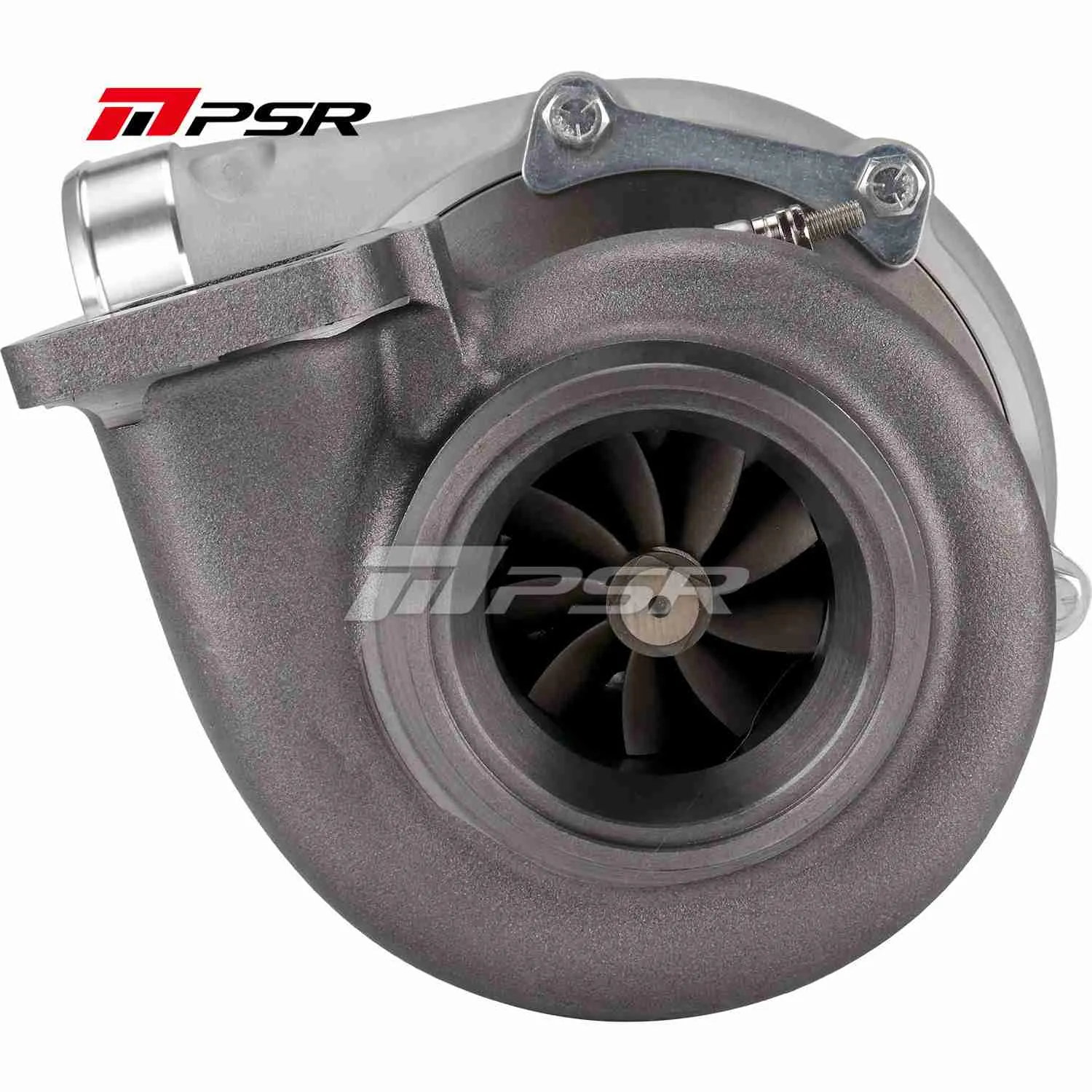

• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Internally Wastegated, Billet Actuator(Working pressure 12 psi)

5855G SPECS:

• Compressor Wheel: 58*71mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 4″ Hose

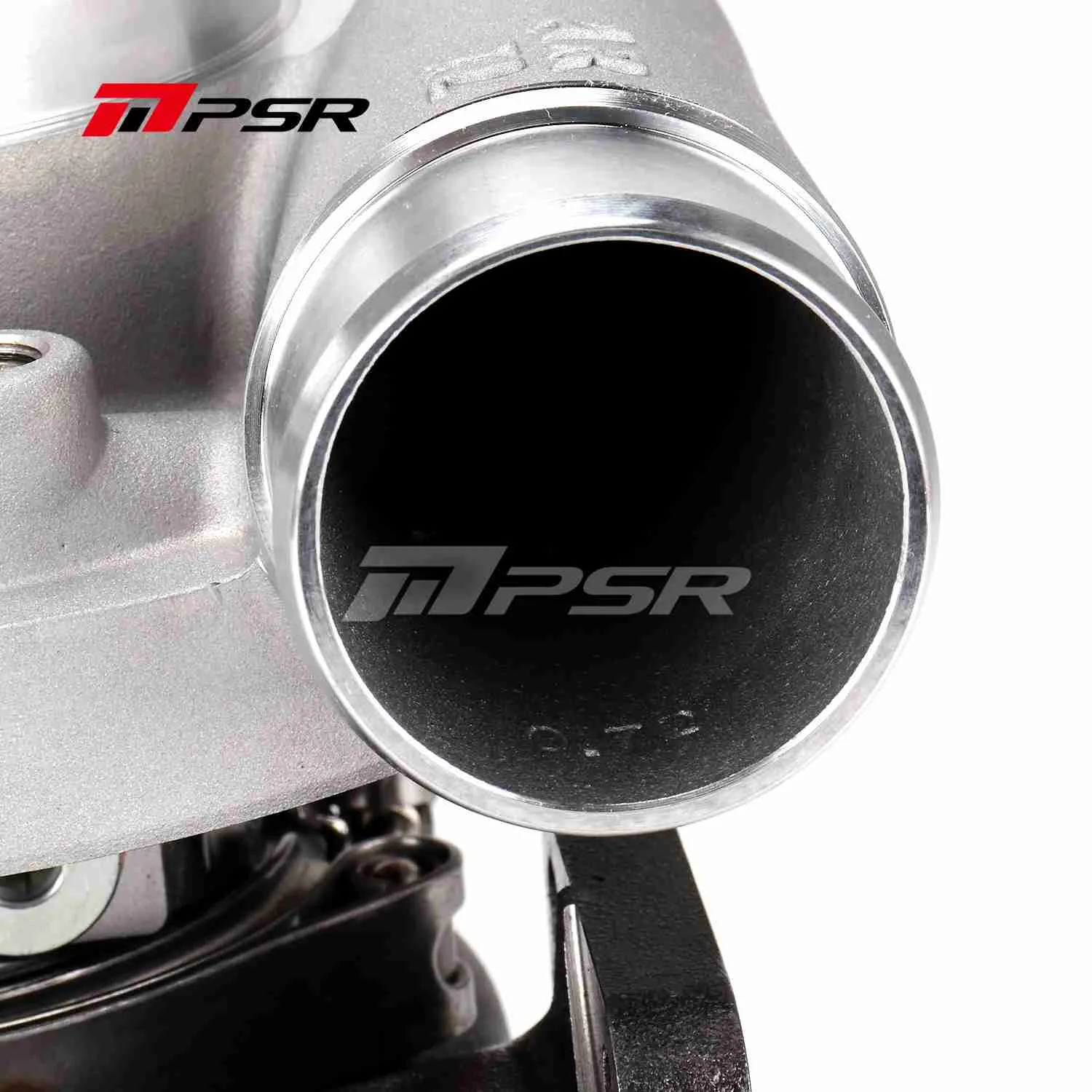

• Compressor Outlet: 2″ Hose

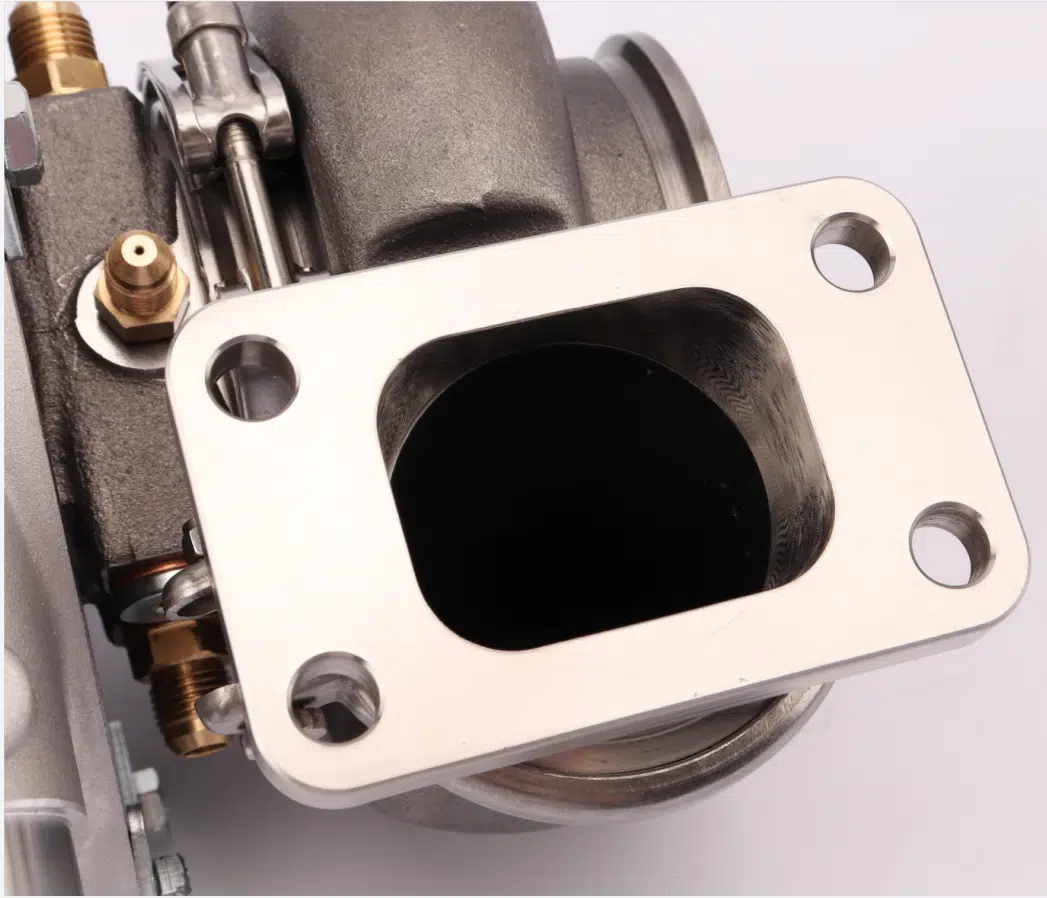

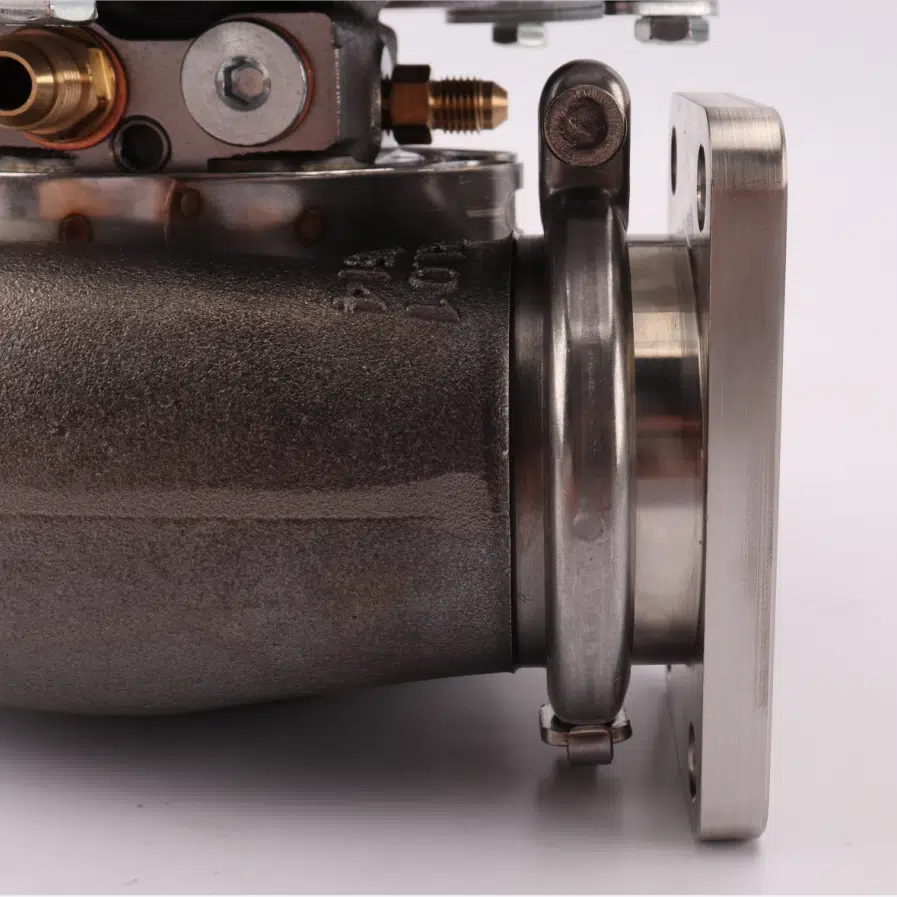

• Turbine Inlet: T25, T3, T4 or V-BAND
• Turbine Outlet: V-Band
• Water Ports: 2-M14 X 1.5
• Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
• Oil Outlet: Std T3 Oil Drain Flange

Eleven Turbine Housing Options:

• Dual vband 0.72A/R;
• Dual vband 0.83A/R
• Dual vband 1.01A/R; T3 0.72A/R
• T3 0.83A/R
• T4 0.82A/R
• T4 divided 0.85A/R
• Dual vband 0.49A/R IWG
• Dual vband 0.72A/R IWG
• Dual vband 0.92A/R IWG
• T25 0.72A/R IWG

Contact us for Custom Configurations.
