540CC FIC FUEL INJECTOR CLINIC INJECTOR SET FOR SUBARU BRZ (HIGH-Z)

540CC FIC FUEL INJECTOR CLINIC INJECTOR SET FOR SUBARU BRZ (HIGH-Z)

Regular price $413.00 USD
Regular price Sale price $413.00 USD
Sale Sold out
Plug & Play

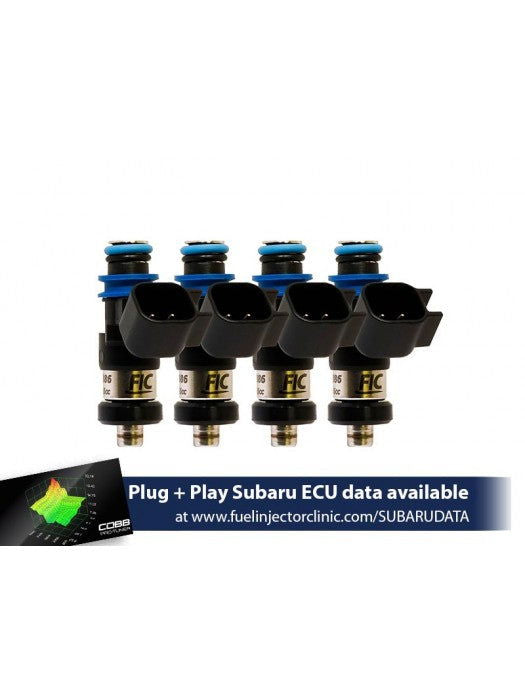

Subaru BRZ Fuel Injector Clinic Injector Set: 4x540 cc Saturated / High Impedance Ball & Seat Injectors. These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Includes pigtails PGT USC4 or add Plug & Play adaptors PADPUtoD4.

Fuel Injector Clinic's high performance fuel injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set.

Fuel Injector Clinic's high performance fuel injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.

Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.

Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. For aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.

This set of injectors requires you to change the injector plug on the wiring harness in your car. This can be done by soldering in the pigtails (included with purchase) to replace the plugs currently on your harness, or you can choose to purchase the optional plug-n-play adaptors which will convert from the type of plugs on these injectors to the plugs on your harness without any need for cutting or soldering.

This plug conversion is made necessary because FIC always chooses to provide brand new, unused injectors for its performance applications. We do not believe that increasing the chance of a failure due to using remanufactured or core program based injectors is ever warranted.

FITMENT SPECIFICATIONS
Bottom O-ring Outer Diameter 16mm Square Seal
Cylinder Quantity 4
Height 38mm
Impedance High-Z
Plug and Play Adaptor PADPUTOD4
Top O-ring 11mm
HORSEPOWER SUPPORTED
Engine Aspiration naturally aspirated
Fuel Pressure 43.5
WHP on E85 at 43psi 90%DC NA 242.11
WHP on E85 at 43psi 90%DC Supercharged 220.10
WHP on E85 at 43psi 90%DC Turbo 201.76
WHP on E85 at 58psi 90%DC NA 279.64
WHP on E85 at 58psi 90%DC Supercharged 254.22
WHP on E85 at 58psi 90%DC Turbo 233.03
WHP on Gas at 43psi 90%DC NA 314.74
WHP on Gas at 43psi 90%DC Supercharged 286.13
WHP on Gas at 43psi 90%DC Turbo 262.29
WHP on Gas at 58psi 90%DC NA 363.53
WHP on Gas at 58psi 90%DC Supercharged 330.48
WHP on Gas at 58psi 90%DC Turbo 302.94
